LabSat 3 Wideband

Posted in Products

The most powerful LabSat yet. LabSat 3 WIDEBAND captures and replays more GNSS signals at much higher resolution than before.

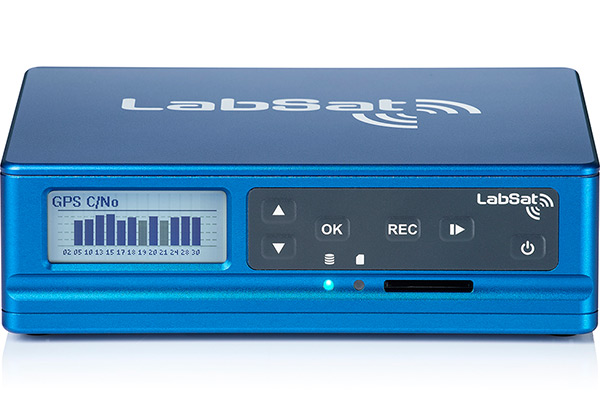

LabSat3 Wideband frontSmall, battery powered and with a removable solid state disk, LabSat 3 WIDEBAND allows you to quickly gather detailed, real world satellite data and replay these signals on your bench.

With three channels, a bandwidth of up to 56MHz and 6 bit sampling (3 bit I & 3 bit Q), LabSat 3 WIDEBAND can handle almost any combination of constellation and signal that exists today, with plenty of spare capacity for future planned signals.

LabSat 3 WIDEBAND can record and replay the following signals:

  • GPS: L1 / L2 / L5
  • GLONASS: L1 / L2 / L3
  • BeiDou: B1 / B2 / B3
  • QZSS: L1 / L2 / L5
  • Galileo: E1 / E1a / E5a / E5b / E6
  • IRNSS: L5
  • SBAS: WAAS, EGNOS, GAGAN, MSAS, SDCM

Features and Applications

  • Wide bandwidth recording at up to 56MHz
  • Three frequency sets / channels
  • 4 or 6 bit capture
  • One touch record and replay
  • 1TB SSD hard drive
  • SD card interface
  • Internal battery - up to two hours of use
  • Standalone operation, or via external control
  • Compact form factor; only 1.2kg


LabSat 3 Wideband is suitable for the testing and development of a whole host of products within a wide variety of applications:

  • Drones
  • Autonomous vehicles
  • Surveying equipment
  • Personal monitoring devices
  • Aerospace
  • End of line product testing

GNSS Frequency Guide - Feature Preview

LabSat 3 Wideband comes with an integral web server to help you plan and set up your GNSS testing program.

You can see a preview of the LabSat 3 Wideband GNSS Frequency Guide here. This easy-to-use application can also function as a GNSS frequency selection tool or a look-up chart for GNSS signal location.

Wideband Freq

The image above shows an example test setup within the LabSat 3 Wideband web server. All GNSS signals and one signal band are selected, a bandwidth of 56 MHz around the centre frequency of 1580 MHz, and a current quantisation of 1.

Bandwidth Setting:

LabSat 3 Wideband has three bandwidth settings. 56 MHz, 30 MHz and 10 MHz.

The bandwidth of the GNSS signals varies, for example a GPS L1 C/A code signal has a bandwidth of 24 MHz. However, due to the signal design a bandwidth of 9.66 MHz will capture enough data to allow the receiver under test to acquire, track and navigate as with LabSat 3 single, dual and triple constellation devices.

Other signals with a different signal design like Galileo E1 PRS signal has a bandwidth of 46 MHz and a signal design spread across the bandwidth.
Many other signals have a similar requirement like GPS L1/L2 P code and M code. LabSat 3 Wideband has been designed to capture all these signals.

Frequency Setting:

LabSat 3 Wideband is designed to capture and replay GNSS signals in the upper L-Band (1559 - 1610 MHz) and lower L-Band (1164 - 1300 MHz).

Quantisation setting:

LabSat 3 Wideband can record and replay GNSS Signals at quantisation levels of:
  • 3 bits (3 bit I + 3 bit Q)
  • 2 bits (2 bit I + 2 bit Q)
  • 1 bits (1 bit I + 1 bit Q)

Small, lightweight enclosure

LabSat 3 Wideband is housed in a conveniently small enclosure measuring 167mm x 128mm x 46mm and weighing only 1.2kg, so it can be used to record GNSS signals anywhere. Subsequent replay is entirely realistic to allow for robust product development and testing.

The system is simple to use with one touch record and replay and SSD logging, and no requirement for a connected computer. An inbuilt battery pack gives two hours of use, and a 1TB solid-state hard drive is supplied as standard.

LabSat 3 Wideband Measurements

Recording and Replay of Additional Signals

LabSat 3 Wideband can record a range of additional signals, synchronised to the GNSS input: dual-CAN, RS232, and digital inputs are simultaneously captured increasing the level of playback realism and allowing for a wider range of testing. This flexibility means that the development of products incorporating this variety of signal streams can be conducted with absolute convenience on the bench, without the need for costly and time consuming field trials. NMEA data is also recorded via the inbuilt GNSS receiver.

LabSat 3 Wideband Additional Inputs

Future-Proofing Your Products

With LabSat 3 Wideband, you are able to develop your products and systems in readiness for new GNSS receivers capable of using the signals that will start to broadcast within the next few years. With the advent of L2C, L5, and L1C, the next generation of GNSS devices will have increased accuracy and capabilities - LabSat 3 Wideband gives you the opportunity to develop your products to be compatible with new receivers as they come to market.

Labsat 3 Wideband Hard Drive

Specifications

  LabSat 3 Wideband
Constellations GPS L1, L2, L5; Galileo E1, E5a/b, E6; GLONASS L1, L2, L3; BeiDou B1, B2, B3; QZSS L1, L2, L5; IRNSS L5; In Band SBAS, user defined frequency bands like Iridium & SiriusXM radio
Output Signal Level Adjustable -73 dBm to -160 dBm
RF Channels 3
RF Channel 1 Centre Frequency Selectable
RF Channel 2 Centre Frequency Selectable
RF Channel 3 Centre Frequency Selectable
Number of Satellites Observed All in view
Sampling Frequency 10.23 MHz, 30.69 MHz, 60 MHz
Bandwidth 10 MHz, 30 MHz, 56 MHz
Quantisation 1, 2 or 3 bit (I&Q)
Data Format I & Q
Additional Logging 2x CAN channels, 4x Digital channels, 1x RS232 channel
Removable Battery Pack Yes
Media Storage Included 1TB Solid State HDD, 4GB SD Card (SD card for firmware upgrades only)
Active Antenna Voltage Supply 3.3 v
Reference Oscillator 10 MHz OCXO, Temperature Stability +/- 0.05 ppm, Frequency Stability +/-0.3 ppm over first year
Operating Voltage 8v to 30 VDC
Size 167 mm x 128 mm x 46 mm
Weight 1.2 kg

LabSat 3 GPS Simulator

Posted in Products

The most affordable, portable, and versatile multi-constellation Global Navigation Satellite Simulator on the market.

Labsat3-GPS-Simulator

If you are selling, testing or developing products incorporating satellite navigation chipsets, then you'll find LabSat 3 makes your job easier, quicker and more cost effective.

Features

  • Available for GPS L1, GLONASS L1,
    Galileo E1, BeiDou B1, QZSS and SBAS
  • Small, rugged, anodised aluminium construction
  • Fully standalone
  • Compact, lightweight and portable
  • Simple to use one touch recording
  • Single, dual or triple constellation
  • Internal battery life up to 2 hours

Why use a GPS simulator?

LabSat 3 records and replays real world data, allowing realistic and repeatable testing to be carried out under controlled conditions. Signal artefacts including multipath, ionospheric effects and signal dropouts are reproduced and there are no limits to the number of satellites used in the test.

Conventional testing usually requires driving the same route multiple times, where conditions vary and satellite constellations change between tests. This can make it very challenging to reproduce and find software errors or reception issues with the device under test. Using LabSat 3 saves many hours of work, allowing you to quickly pinpoint errors and verify 'corner cases' without leaving the test bench.

A very useful feature is the ability to record and replay additional streams of data using the high speed digital port(s) on LabSat3. In this way, CAN bus data, RS232 signals or digital event triggers can be fully synchronised during playback, bringing a whole new level of realism to your bench simulations.

LabSat3-SatNav

How does it work?

LabSat 3 receives the signal from a standard satellite antenna, but instead of processing each of the received signals to calculate a position fix, LabSat 3 digitises and stores the original satellite signals at a very high bandwidth onto a removable SD card or USB hard drive.

The RF output of the LabSat 3 is then connected to the antenna input of the device under test and the recorded data is replayed back as an RF signal. The device under test will then start to track the satellites as though it was travelling along the same path taken by the LabSat 3 during the original recording.

How easy is it to use?

One touch record/replay makes LabSat 3 extremely simple to operate. With its rugged construction, built in battery and clear display, it is very easy to use the LabSat 3 in the same environment as your product will experience in everyday use, with little or no training.

A free library of pre-recorded and simulated files from around the world is included to get you up and running as quickly as possible.

What satellite constellations can I record?

Each LabSat can be tuned to one of three user selectable frequencies:
  • 1575.420 MHz - GPS (L1) + Galileo + SBAS + QZSS
  • 1602.000 MHz - GLONASS (L1)
  • 1561.098 MHz - BeiDou (B1)

Model Range

LabSat 3 comes in six versions. All LabSat versions also come with a SatGen v3 option.

  • RLLS03-1P
    Single Constellation / Replay only
    Signal Band: 1x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: None

  • RLLS03-1RP
    Single Constellation / Record & Replay
    Signal Band: 1x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: RLACS198 Quad Constellation Antenna included

  • RLLS03-2P
    Dual Constellation / Replay only
    Signal Band: 2x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: None

  • RLLS03-2RP
    Dual Constellation / Record & Replay
    Signal Band: 2x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: RLACS198 Quad Constellation Antenna included

  • RLLS03-3P
    Triple Constellation / Replay only
    Signal Band: 3x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: None

  • RLLS03-3RP
    Triple Constellation / Record & Replay
    Signal Band: 3x GPS L1 (incl. SBAS/ Galileo/ QZSS), GLONASS L1 or BDS B1
    GNSS Antenna: RLACS198 Quad Constellation Antenna included

All units types can be factory upgraded to any other version.
All versions of LabSat 3 are supplied with a standard TCXO (Temperature-compensated crystal oscillator). However, an OCXO (Oven-controlled crystal oscillator) upgrade is available for all units. Please contact your local distributor or RACELOGIC office for more details.

Can I test with an internal antenna & no external antenna connector?

Yes, by using our active GPS antenna or the Passive GPS/GLONASS antennas listed in our LabSat 3 accessories section. These antennas connect directly to the RF ports on the LabSat 3 and will transmit the RF signal over short distances to the GNSS device being tested.

What else can I record at the same time?

You can log a variety of other information such as CAN, serial or digital data alongside the satellite signals. When the file is replayed, the embedded data is reproduced at the same time, synchronized to within 60nS. You can also embed a 1PPS signal using the internal GPS receiver.

Can I generate my own GPS test scenarios?

If you want to create your own custom test scenario using artificial signals, SatGen software allows you to quickly draw a route using Google maps, and then automatically creates an RF file which can then be transferred to an SD card and replayed on a LabSat 3.

Multiple satellites and multiple constellations can be simulated, and the user can also have precise control over velocity, heading and height profiles.

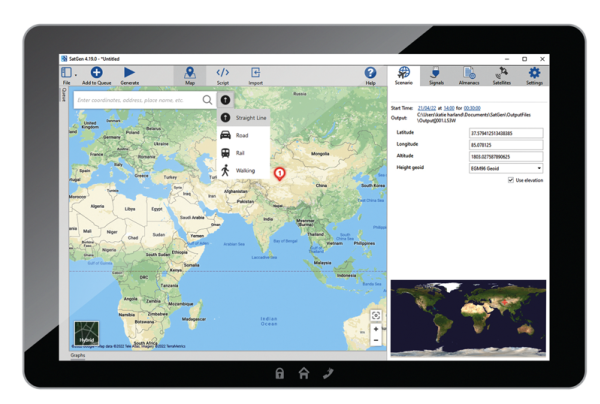

SatGenv2 Screen montage

A suitable almanac can be automatically downloaded, or defined by the user. SatGen can also import KML files and NMEA files, and the time, date and dynamics are fully user definable.

Download a free demonstration of SatGen software (with a limited scenario length) here >

How much data can I store on an SD card?

SanDisk 32GB Extreme SDHC cardEach channel uses ~14GBytes per hour, and the largest SD card which can be used is 128GB. Therefore you can record just over 9 hours with a single constellation and 4.5 hours with two constellations.

Available SD cards include 32GB, 64GB and 128 GB. Storage devices over 32GB need to be formatted in the FAT32 file system.

Please use SanDisk Extreme SD cards supplied by RACELOGIC (see Accessories below). The LabSat system is capable of formatting SD cards by selecting the file menu.

Specifications

LabSat 3 Triple Constellation

  • Constellations: 3 of GPS/Galileo/SBAS/QZSS, GLONASS, or BeiDou
  • Output Signal Level: Adjustable -73dBm to -105dBm
  • RF Channels: 3
  • RF Channel Centre Frequency: 1561.098/ 1575.4/1602.00 MHZ
  • Number of Satellites Observed: All in view
  • Sampling Frequency: 16.368MHz
  • Bandwidth: 9.66 MHz
  • Quantisation: 3x channels at 1-bit, 2x channel at 1-bit or 1x channel at 2-bit
  • Data Format: I & Q
  • Additional logging: 2 channels of CAN, RS232 or Digital
  • Removable Battery Pack: All versions
  • Media Storage Included: 32Gb SD card & 1TB USB HDD c/w worldwide scenario library
  • Active Antenna Voltage Supply: 3 v
  • Reference Oscillator: 16.368MHz Temperature controlled ± 2.5 ppm or ± 0.3ppm OCXO option
  • Operating voltage: 8v to 30VDC
  • Size: 167mm x 128mm x 43mm
  • Weight: 960g with Battery (910g without Battery)

LabSat 3 Dual Constellation

  • Constellations: 2 of GPS/Galileo/SBAS/QZSS, GLONASS, or BeiDou
  • Output Signal Level: Adjustable -73dBm to -105dBm
  • RF Channels: 2
  • RF Channel Centre Frequency: 1561.098/ 1575.4/1602.00 MHZ
  • Number of Satellites Observed: All in view
  • Sampling Frequency: 16.368MHz
  • Bandwidth: 9.66 MHz
  • Quantisation: 2x channel at 1-bit or 1x channel at 2-bit
  • Data Format: I & Q
  • Additional logging: 2 channels of CAN, RS232 or Digital
  • Removable Battery Pack: All versions
  • Media Storage Included: 32Gb SD card & 1TB USB HDD c/w worldwide scenario library
  • Active Antenna Voltage Supply: 3 v
  • Reference Oscillator: 16.368MHz Temperature controlled ± 2.5 ppm or ± 0.3ppm OCXO option
  • Operating voltage: 8v to 30VDC
  • Size: 167mm x 128mm x 43mm
  • Weight: 960g with Battery (910g without Battery)

LabSat 3 Single Constellation

  • Constellations: 1 of GPS/Galileo/SBAS/QZSS, GLONASS, or BeiDou
  • Output Signal Level: Adjustable -73dBm to -105dBm
  • RF Channels: 1
  • RF Channel Centre Frequency: 1561.098/ 1575.4/1602.00 MHZ
  • Number of Satellites Observed: All in view
  • Sampling Frequency: 16.368MHz
  • Bandwidth: 9.66 MHz
  • Quantisation: 1 or 2-bit
  • Data Format: I & Q
  • Additional logging: No - Upgrade available for CAN, RS232 and Digital
  • Removable Battery Pack: All versions
  • Media Storage Included: 32Gb SD card & 1TB USB HDD c/w worldwide scenario library
  • Active Antenna Voltage Supply: 3 v
  • Reference Oscillator: 16.368MHz Temperature controlled ± 2.5 ppm or ± 0.3ppm OCXO option
  • Operating voltage: 8v to 30VDC
  • Size: 167mm x 128mm x 43mm
  • Weight: 960g with Battery (910g without Battery)

Accessories

To purchase any of the below accessories, please contact your local distributor or email .

LabSat3 128MB sd card

SDHC Extreme Memory Cards
Available with 32, 64 or 128GB. Meet the LabSat requirements for read/write data transfer speeds of up to 45MB/s.

LabSat3-active-antenna

Active GPS Antenna
An active right angle antenna suitable for recording LabSat 3 GPS L1 only signals.

LabSat3-passive-antenna

Passive GPS/GLONASS Antenna
A passive antenna suitable for record/replay of LabSat 3 GPS/GLONASS L1 signals.

LabSat3 card reader

USB 3.0 Card Reader
A professional-level, portable USB reader that provides maximum high speed file transfer. USB interface speed up to 500MB/s.

LabSat3-hard-disk-drive

LabSat 3 Scenario Hard Drive
The LabSat 3 USB 1TB hard disk drive (HDD) includes worldwide scenario database of static and dynamic GNSS recordings.

LabSat3-internal-battery

LabSat 3 Battery
High quality 3.7v 2260 mAh Li-Po internal battery. Rechargeable.

LabSat3-battery-charger

LabSat 3 Battery Charger
A convenient 110/240 volt charger for LabSat 3 internal batteries.

LabSat3-expansion-connector

LabSat 3 Expansion Connector Adapter (incl. Screwdriver)
Allows for RS232, CAN and digital data to be recorded/ replayed at the same time as the GNSS RF signals.



Customers

Case Study: Narrative "Clip" wearable camera

Narrative-LogoThe Narrative Clip is a typically innovative wearable, and one of the new wave of 'lifelogging' devices now finding their way into mass production. It is a tiny (36mm x 36mm x 9mm) five megapixel camera with enough memory to store four thousand images and battery power for two days of use. Designed and manufactured by a Swedish company originally called Memoto, who sourced crowdfunding to get the project off the ground, the Narrative Clip is small and non-intrusive to the point that it can be easily worn on one's clothes.

It is such a neat design that it has no buttons at all, only requiring to be put face down to enter standby mode. One of the standout features of the device is that the miniature enclosure includes a custom GPS engine and antenna, allowing for every image it takes to be geotagged. Future development of the cloud-based storage of these images will allow for searching by location.

Narrative-Clip-in-use

Bjorn Wesen, one of the developers on the project, explains how they got started:

"Because GPS does not work well indoors, at first we simply needed a way to test reception inside our office. Since we're not based in California, we can't just move the office outdoors! We started with a simple GPS-repeater, that is, an antenna mounted outside and an amplifier and re-transmitter indoors. This worked fine for some of the engineering tasks, but is not sufficient to reproduce testing scenarios or comparing sensitivity between different antenna-solutions, so we started looking at GPS record/replay products and that's when I contacted Racelogic."

This is a problem often faced by anyone developing a product that will include GPS: whilst it is entirely possible to walk outside and check that a signal is obtained, as Bjorn points out, it doesn't go far enough. The satellite almanac is constantly shifting, as are the signals themselves as they are 'bent' travelling through the ionosphere. Consistency is therefore hard to maintain, so a LabSat is the perfect solution.

Read More
