LabSat 3 Wideband
LabSat 3 Wideband
Racelogic's compact yet powerful multi-constellation, multi-frequency GNSS device testing system
- 4 constellations
- 20 simultaneous signals
- 56 MHz bandwidth
- 6 bit resolution
- HTML interface
- API available
Record & replay more GNSS signals than ever before
The LabSat 3 Wideband is Racelogic's most powerful LabSat yet. Now you can record and replay more GNSS signals at much higher resolution than ever before.
With three channels, a bandwidth of up to 56 MHz and 6 bit sampling (3 bit I & 3 bit Q), LabSat 3 Wideband can handle almost any combination of constellation and signal that exists today, with plenty of spare capacity for future planned signals.

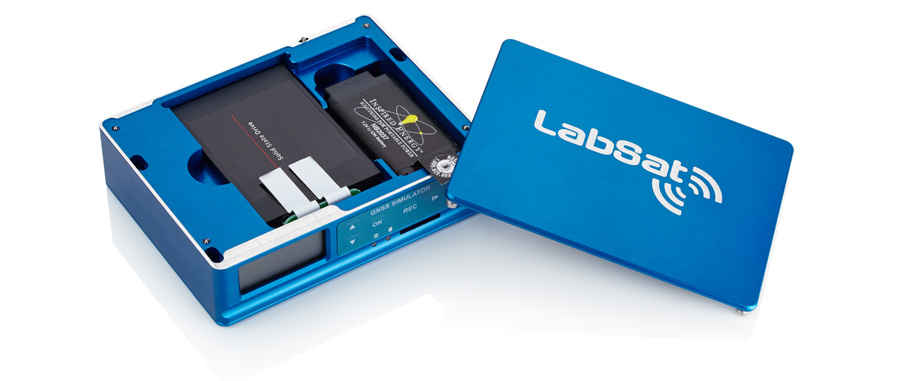

Small, battery powered and with a removable solid state disk, LabSat 3 Wideband allows you to quickly gather detailed, real world satellite data and replay these signals on your bench.
LabSat 3 Wideband can record and replay the following signals:
- GPS: L1 / L2 / L5
- GLONASS: L1 / L2 / L3
- BeiDou: B1 / B2 / B3
- QZSS: L1 / L2 / L5
- Galileo: E1 / E5a / E5b / E6
- IRNSS: L5
- SBAS: WAAS, EGNOS, GAGAN, MSAS, SDCM
LabSat 3 Wideband records and replays more constellations than ever before with spare capacity for future planned signals

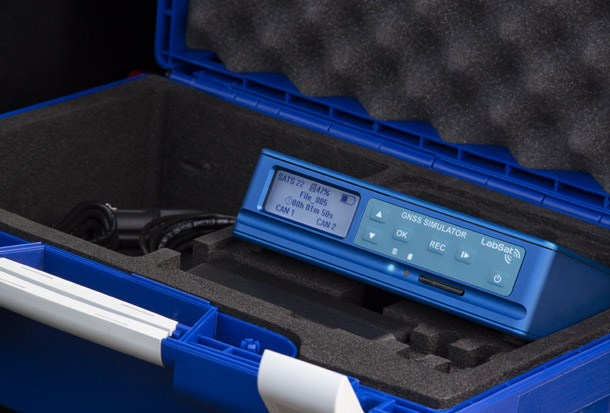

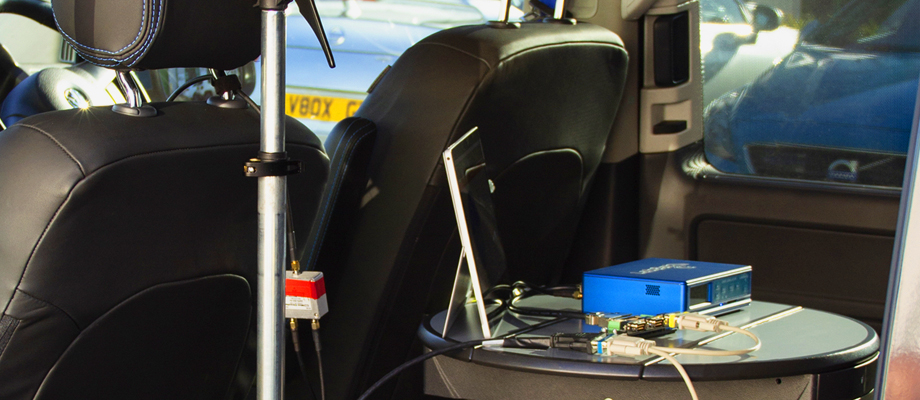

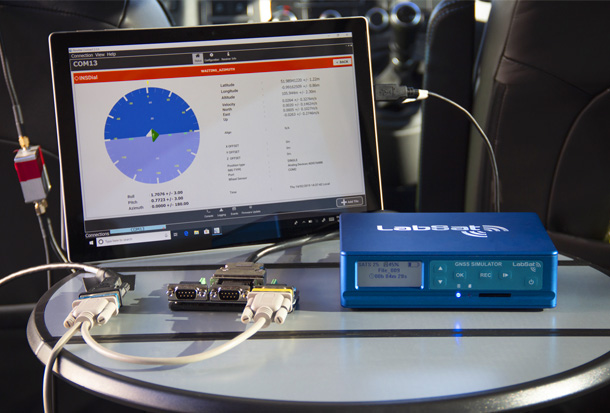

In the Lab
LabSat 3 Wideband allows you to quickly gather detailed real world satellite data and replay these signals on your bench

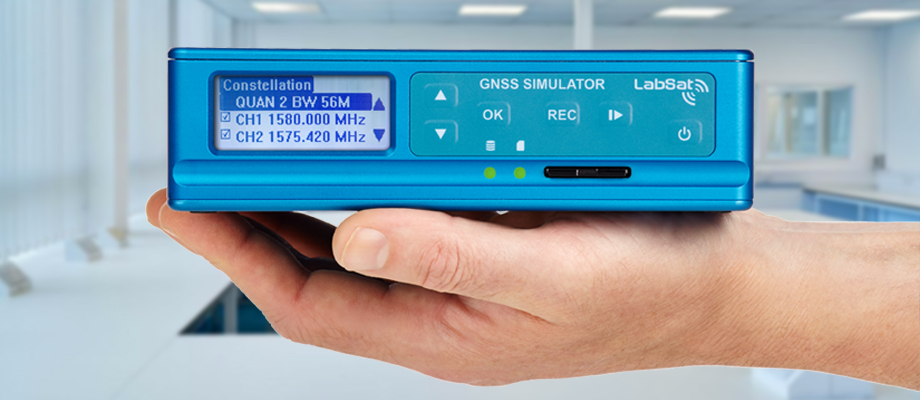

In the Field
Compact and portable, LabSat 3 Wideband fits in a backpack and records RF signals anywhere in the world with ease
LabSat 3 Wideband RF bandwidth recording at up to 56 MHz
Record and replay all GNSS signals in the upper and lower L Band
Record and replay RF signals from every GNSS constellation

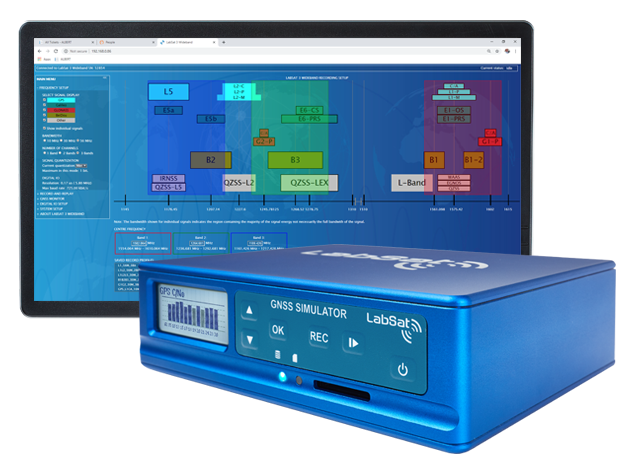

The HTML interface makes device set-up incredibly simple and problem-free
API available for development teams
Supports future constellation launches such as L2C, L5 and L1C.
Up to 2 hours runtime in the field thanks to its internal removable battery
Record a range of additional signals synchronised to the GNSS input
Reliable. Again and again
LabSat 3 Wideband gives you the power to create a level benchmark for testing ensuring consistently accurate results every time.
Repeatable. Anywhere. Any time

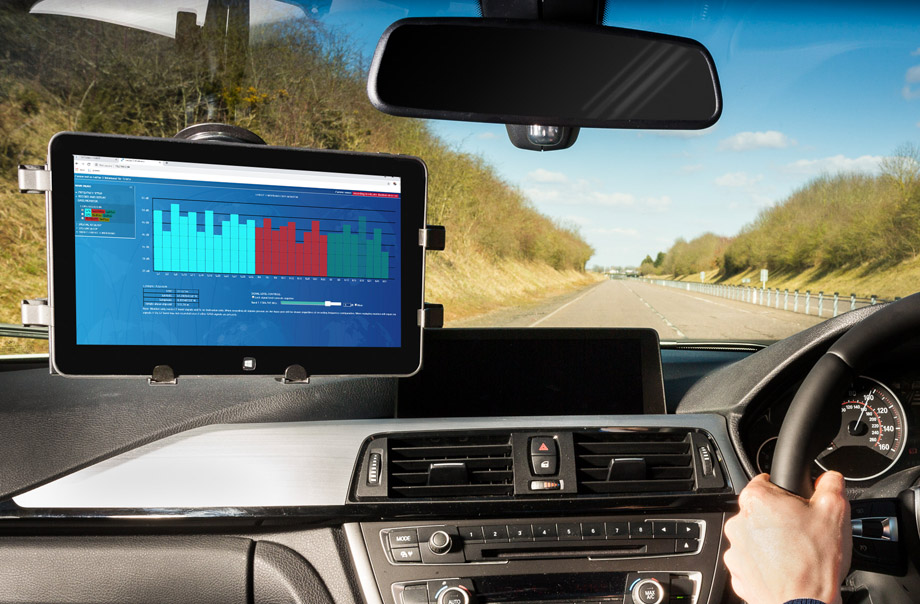

Create a test bed for your products based on where and how they're likely to be used whether it's on a car journey through downtown Tokyo or a mountain trek over the Alps. LabSat 3 Wideband will always produce a true representation of GNSS RF conditions.
Versatile testing solutions
Not only can the LabSat 3 Wideband record almost any combination of constellation and signal but can also record RS232, CAN and Dual-CAN together with digital IO.
LabSat 3 Wideband is suitable for the testing and development of a whole host of products within a wide variety of applications: drones, autonomous vehicles, surveying equipment, personal monitoring devices, aerospace, end-of-line product testing and many more.
LabSat 3 Wideband in Detail
This is where you'll find answers to the most commonly asked LabSat 3 Wideband questions. If you require further assistance please don't hesitate to contact us or visit the Support area of the website.
How easy is LabSat 3 Wideband to configure?
To simplify the configuration and device control process, LabSat 3 Wideband has an internal web server for configuration which can be easily accessed via a standard web browser on your PC.
What are the Bandwidth, Frequency & Quantisation settings?
LabSat 3 Wideband has three bandwidth settings. 56 MHz, 30 MHz and 10 MHz.
The bandwidth of the GNSS signals varies, for example a GPS L1 C/A code signal has a bandwidth of 24 MHz. However, due to the signal design a bandwidth of 9.66 MHz will capture enough data to allow the receiver under test to acquire, track and navigate as with LabSat 3 single, dual and triple constellation devices.
Other signals with a different signal design like Galileo E1 PRS signal has a bandwidth of 46 MHz and a signal design spread across the bandwidth.
Many other signals have a similar requirement like GPS L1/L2 P code and M code. LabSat 3 Wideband has been designed to capture all these signals.
LabSat 3 Wideband is designed to capture and replay GNSS signals in the upper L-Band (1559 - 1610 MHz) and lower L-Band (1164 - 1300 MHz).
LabSat 3 Wideband can record and replay GNSS Signals at quantisation levels of:
- 3 bits (3 bit I + 3 bit Q)
- 2 bits (2 bit I + 2 bit Q)
- 1 bits (1 bit I + 1 bit Q)
What additional signals can I record & replay ?
LabSat 3 Wideband can record a range of additional signals, synchronised to the GNSS input: dual-CAN, RS232, and digital inputs are simultaneously captured increasing the level of playback realism and allowing for a wider range of testing.
This flexibility means that the development of products incorporating this variety of signal streams can be conducted with absolute convenience on the bench, without the need for costly and time consuming field trials. NMEA data is also recorded via the inbuilt GNSS receiver.
Can I test a device with an internal antenna and no external connector?
You can test a device with an internal antenna and no external connector by using an active GPS antenna or the Passive GPS/GLONASS antennas. These antennas connect directly to the RF ports on the LabSat 3 Wideband and will transmit the RF signal over short distances to the GNSS device being tested.
You will however need to be in an RF-screened environment to avoid interference with live signals. This can be done in a fully screened RF room or a portable enclosure, such as the LabSat Test Enclosure. This allows for secure screened testing and is ideal when working with devices that do not have an external antenna connector - such as wearables, smartphones, and sports/fitness trackers.
|Constellations||GPS L1, L2, L5; Galileo E1, E5a/b, E6; GLONASS L1, L2, L3; BeiDou B1, B2, B3; QZSS L1, L2, L5; IRNSS L5; In Band SBAS, user defined frequency bands like Iridium & SiriusXM radio|
|Output Signal Level||Adjustable -73 dBm to -162 dBm|
|RF Channel Centre Frequencies||Selectable|
|Number of Satellites Observed||All in view|
|Sampling Frequency||10.23 MHz, 30.69 MHz, 58 MHz|
|Bandwidth||10 MHz, 30 MHz, 56 MHz|
|Quantisation||1, 2 or 3 bit (I & Q)|
|Data Format||I & Q|
|Additional Logging||2x CAN channels, 4x Digital channels, 1x RS232 channel|
|Removable Battery Pack|
|Media Storage Included||1 TB Solid State Drive, 4 GB SD Card (SD card for firmware upgrades only)|
|Active Antenna Voltage Supply||2.8 V to 4.6 V|
|Reference Oscillator||OCXO, Temperature Stability ± 0.05 ppm, Frequency Stability ± 0.3 ppm over first year
TCXO, Temperature Stability ± 0.05 ppm, Frequency Stability ± 0.1 ppm over first year
|Operating Voltage||8 V to 30 V DC|
|Size||167 mm x 128 mm x 46 mm|

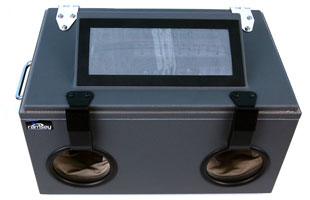

LabSat 3 GNSS Test Enclosure
RF shielded enclosure suitable for testing GNSS devices with internal antenna.
Dipole antenna (RLACS219) included.
Passive Rebroadcast Antenna
A passive antenna suitable for replaying GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b & L-band corrections signals.

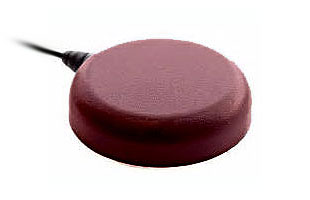

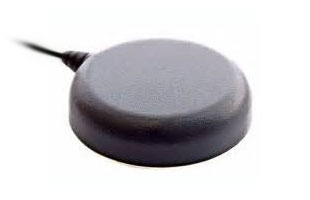

LabSat 3 Wideband Replacement Antenna
An active antenna suitable for recording GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5a+b & L-band corrections signal.

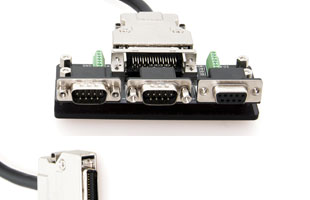

LabSat 3 Locking Expansion Connector
Allows for RS232, CAN and digital data to be recorded/ replayed at the same time as GNSS RF data.
Ensures that a secure lock is achieved during recording in challenging environments.
GPS L2, GPS l5, IRNSS
